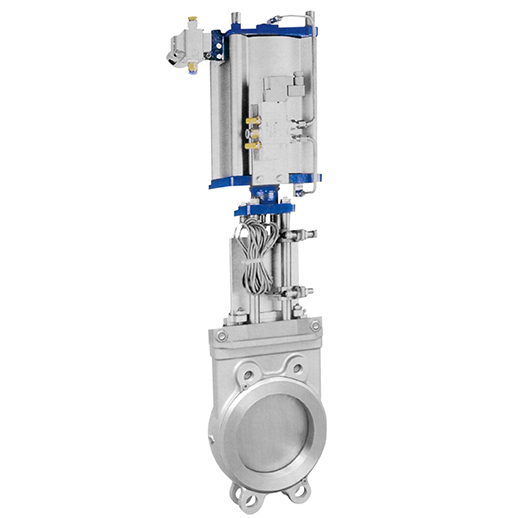

Pneumatic knife gate valve

Product Overview:

The gate valve is widely used in metallurgy, electric power, petrochemical, gas, combustible gas and water supply and drainage and other media pipelines, such as seawater desalination, air separation, high and medium pressure condensate, gas, oil and other working conditions, used to cut off or connect the pipeline medium.

Specifications:

> size range: 2"~48"(DN50~DN1200)

> pressure level: PN10~150LB

> temperature range: -29°C~230°C > Connection: flange, clamp, etc

> main material: carbon steel, stainless steel, etc

> sealing surface hardening treatment: surfacing welding Stellite alloy and nickel-based alloy, spraying WC

> operation mode: manual, electric, pneumatic, etc

Product Standards:

1. The design and manufacture of the valve shall be in accordance with the provisions of MSS SP-81 and JB/T8691

2. The length of the structure shall be in accordance with the provisions of MSS SP-81

3. The connecting flange shall be in accordance with the provisions of GB/T9124

4. The inspection and test of the valve shall be in accordance with the provisions of MSS SP-81

Contact Now

Product Details

Features:

1. The knife gate valve is a kind of gate valve, and the driving device is coaxial with the valve stem gate during the opening and closing process, and the opening torque is small, and the operation is convenient and labor-saving.

2. Rubber packing design is used to make the packing seal more reliable. The packing preload nut adopts an anti-off nut, which can prevent the nut from loosening in long-term use.

3. The ram adopts nylon point guide, the ram is positioned to ensure the smooth movement of the ram, and the bottom of the port adopts a smooth transition, which is not easy to accumulate slurry and slag, which greatly reduces the use failure of the valve.

4. The bottom of the ram adopts a knife-shaped arc design, which has a strong cutting force, which is especially suitable for the control of pulp and fiber-containing media. After the ram is finely ground, the surface is treated with hard chrome plating, which has strong wear resistance and corrosion resistance.

5. The sealing seat adopts movable sealing, and adopts O-ring preloading, and the preloading force provided makes the sealing seat close to the valve plate, which has the function of automatic compensation for the wear of the sealing pair in long-term use, and improves the service life. Depending on the application, metal seats, PTFE or EPDM seats are available.
