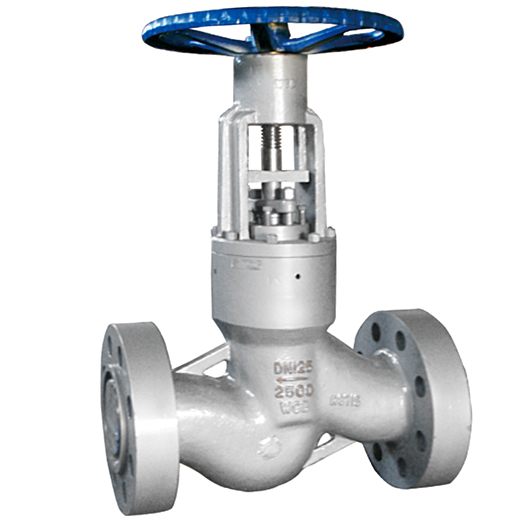

American Standard self-sealing globe valve

Product Overview:

The globe valve only allows the medium to flow in one direction, which is suitable for use in shut-off or throttling occasions; There are a variety of structural forms such as straight-through and right-angle globe valves; It is widely used in water, oil, gas, steam and other media working conditions.

Structural features:

1. The product structure is reasonable, the sealing performance is good, and the safety and reliability are high.

2. Sealed face welded Co-based cemented carbide, good wear resistance, corrosion resistance, scratch resistance, long service life.

3. The valve stem is modulated and surface oxidized, and has good corrosion resistance and scratch resistance.

4. The nominal pressure is greater than 25MPa (CL1500), and the cavity adopts a self-tight sealing structure, and the sealing performance is enhanced with the increase of pressure to ensure the sealing performance.

5. The valve is equipped with an inverted sealing structure, which is safe and reliable.

6. The material of the parts, the flange and the size of the butt welding end can be selected according to the actual working conditions or user requirements, which can meet various working conditions.

Technical Parameters:

Specification Range:DN 10-DN 100(NPS 3/8-NPS 4)

Pressure Rating:PN 10-PN 250(CL 150-CL 1500)

Operating Temperature:-29°C-425°C (or as per customer's request)

Connection:Flange type, thread type, butt welding, socket welding

Drive modeManual, electric, pneumatic, hydraulic, etc

Medium used:Water, steam, oil

Product Standards:
