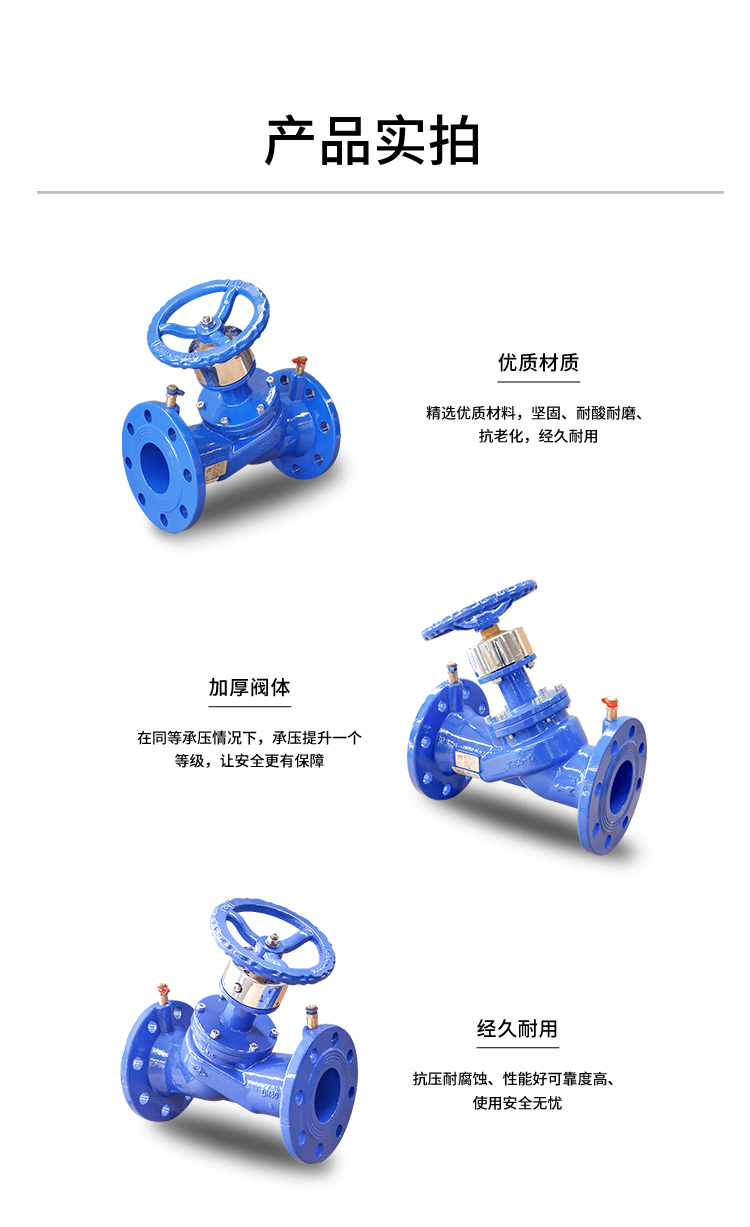

Flange type static balancing valve (SP45F-92C) DN40-DN250

Product overview:

The static balancing valve achieves the purpose of regulating the flow by changing the flow resistance flowing through the valve. The new water volume is balanced and distributed according to the proportion calculated by the design. Each branch increases or decreases in proportion at the same time to meet the partial load flow under the current climate needs. demand, playing the role of thermal balance.

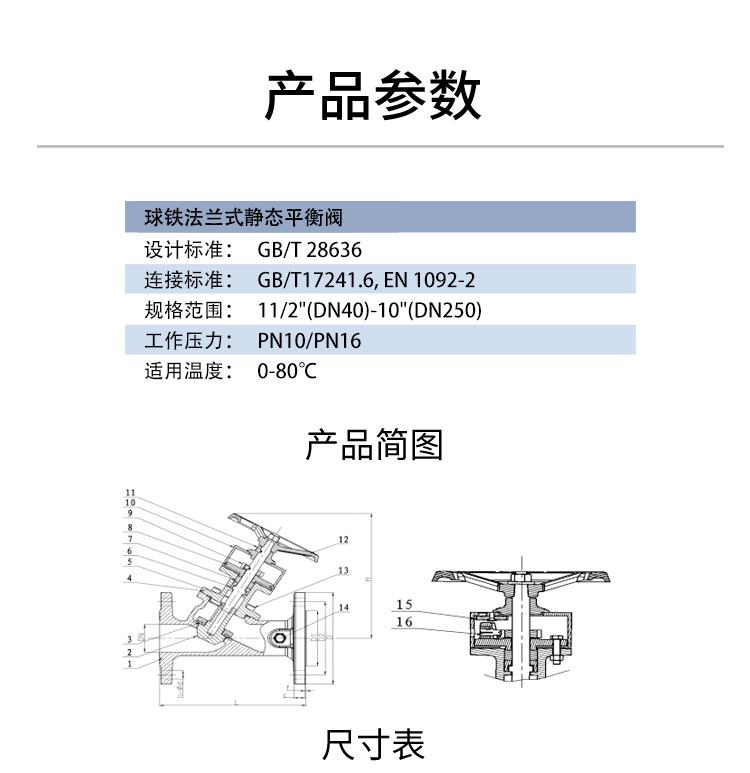

Parameter standards:

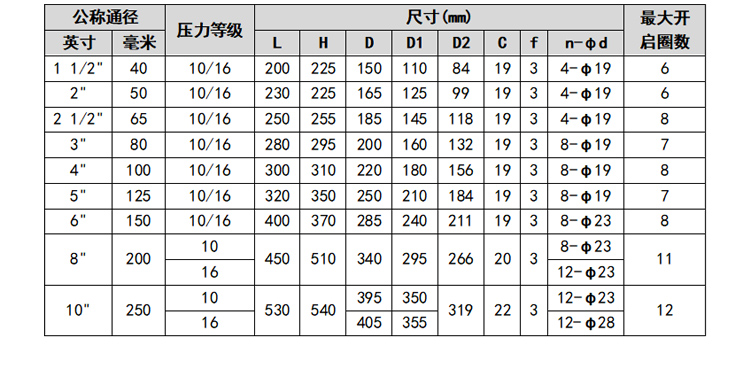

Size range: DN40-DN250

Design standard: GB/T 28636

Connection standard: GB/T17241.6, EN 1092-2

Working pressure: PN16, PN10

Scope of application: Static balancing valves are mainly used in industrial and civil building heating and air conditioning piping systems, with working temperatures between 0℃-80℃.
