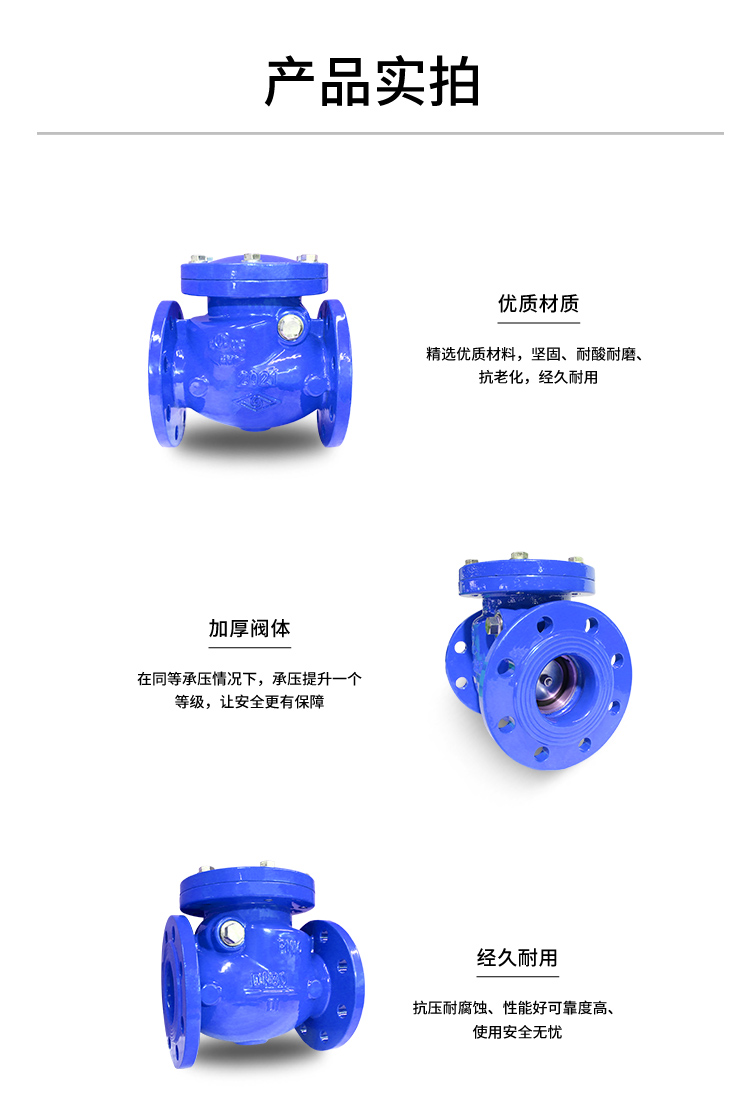

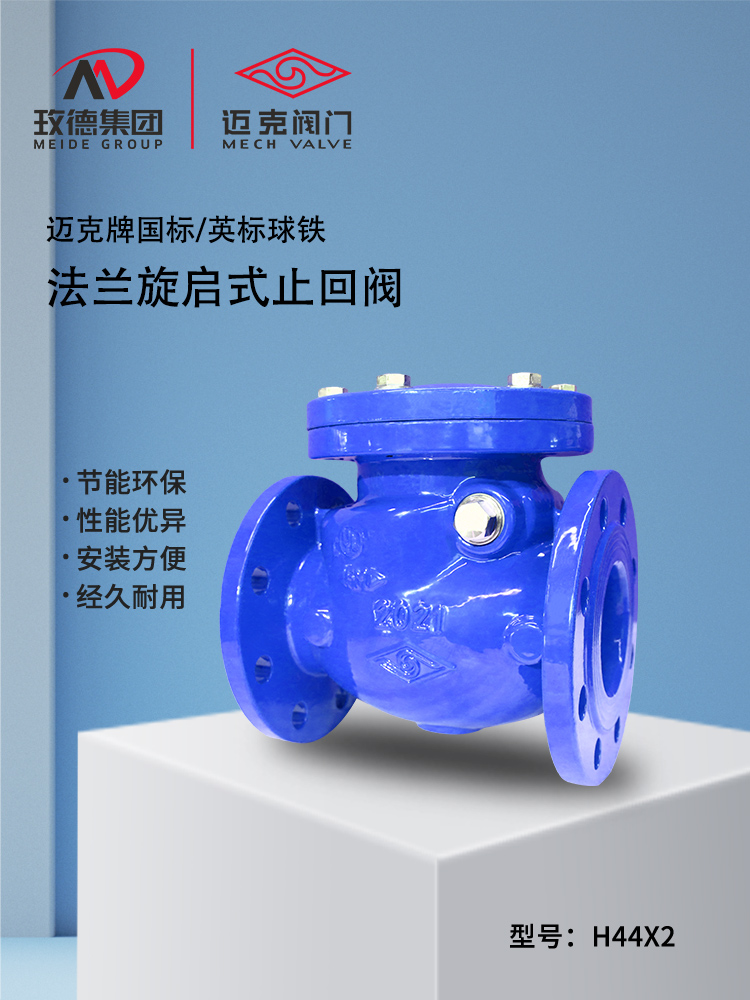

Flange swing check valve (H44X2-92C) DN50-DN300

Product overview:

Swing check valves are automatic valves and are mainly used on pipelines with one-way flow of media. They only allow the medium to flow in one direction to prevent accidents.

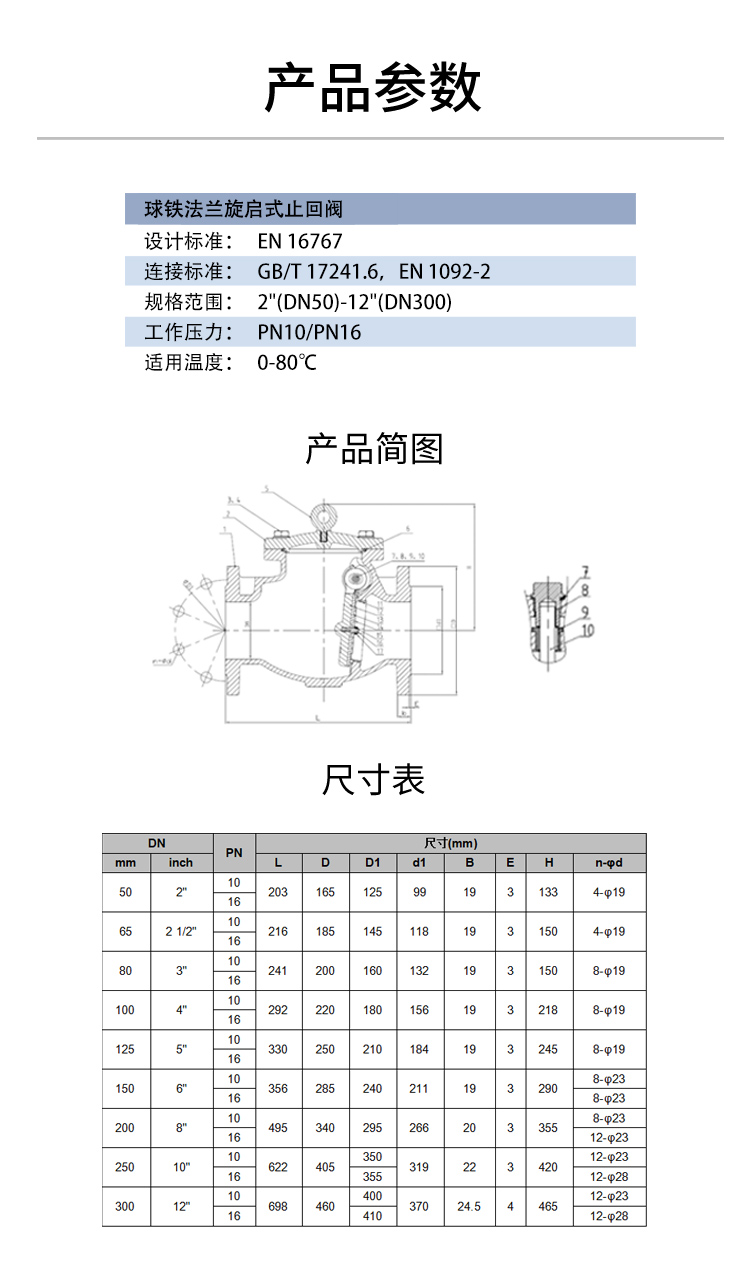

Parameter standards:

Size range: DN50-DN300

Design Standard: EN 16767

Connection standard: GB/T 17241.6, EN 1092-2

Working pressure: PN10/PN16

Scope of application: Suitable for drinking water, water supply and drainage, sewage treatment, irrigation, air conditioning water and other piping systems and industrial fields such as chemical industry and energy. The applicable medium temperature is 0℃-80℃.
