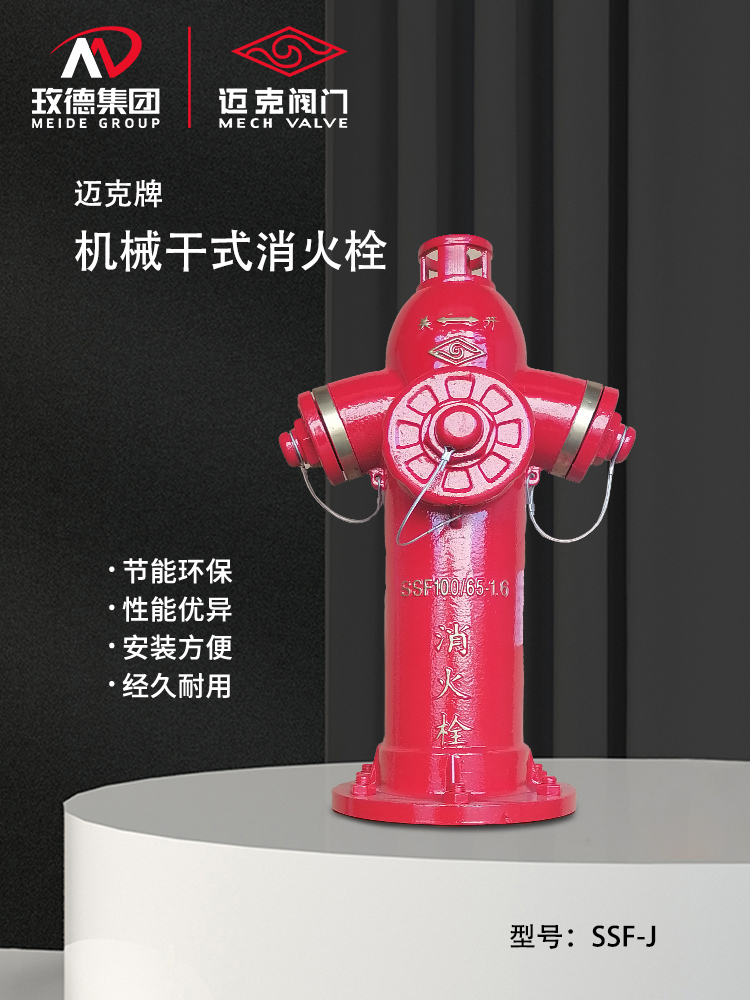

Mechanical dry fire hydrant (SSF-J-901)-DN150

Product overview:

Dry anti-collision fire hydrants are water supply facilities installed on the fire water supply network outside the building. They are mainly used for fire trucks to draw water from the municipal water supply network or outdoor fire water supply network to put out fires. They can also be directly connected to water hoses and water guns to extinguish fires. It is one of the important fire-fighting facilities for fighting fires.

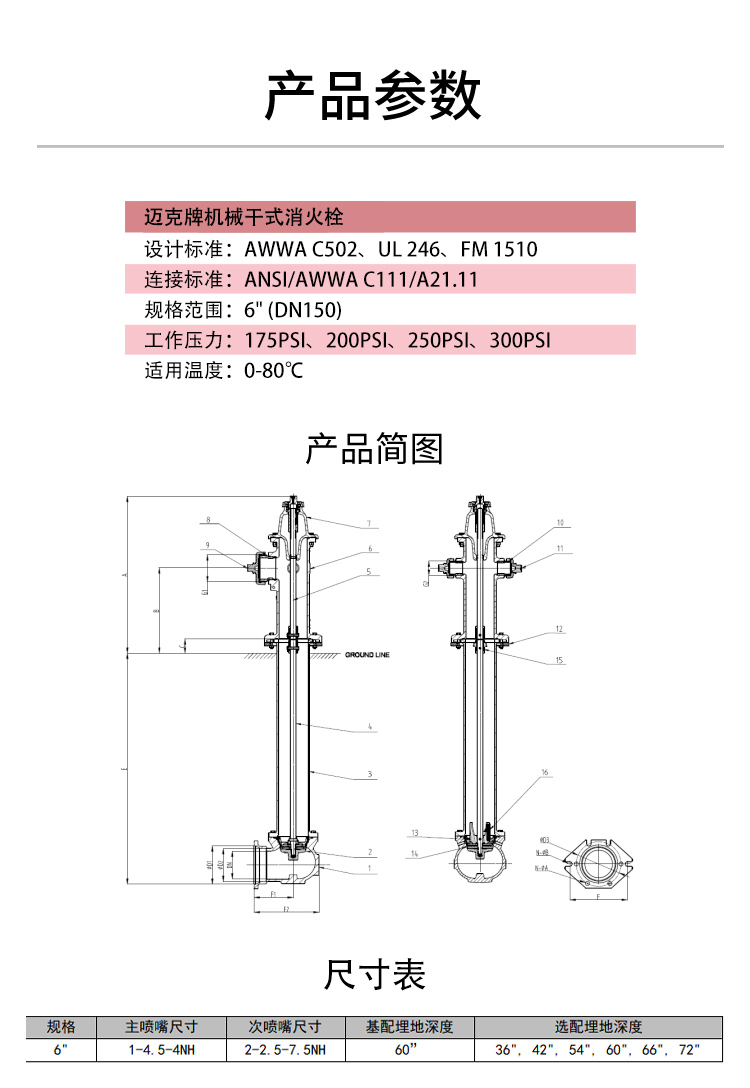

Parameter standards:

Size range:5-1/4" (DN150X128X1524)

design standards:AWWA C502, UL 246, FM 1510

Connection standards:ANSI/AWWA C111/A21.11

work pressure:300PSI, 250PSI, 200PSI, 175PSI

Supporting product materials and standards:

Corresponding material: ASTM A536,65-45-12

Corresponding standards: ANSI/AWWA C111/A21.11

Surface treatment:

• Epoxy spray molding (optional color numbers such as RAL3000, RAL3001, RAL3016, etc.)

• Spray paint (optional color number such as RAL3000, etc.)

• Other surfaces available upon customer request

Application scope:

Dry anti-collision fire hydrant is a water supply facility installed on the fire water supply network outside the building. It is especially suitable for areas with freezing temperatures.

Certification:FM/UL
