National standard vertical check valve

Product Overview:

A check valve is an automatic valve that is mainly used to prevent the backflow of the medium and ensure the one-way flow of the fluid. Its working principle relies on the pressure of the medium itself to push the disc to open, and when the medium flows in the opposite direction, the disc automatically closes under the action of the heavy bonnet force or spring to prevent backflow. Check valves are widely used in water treatment, petrochemical, electric power, HVAC and other fields, and the common types include swing type, lifting type, butterfly type and ball type. Its simple structure and reliable operation can effectively protect pipelines and equipment from backflow damage. When selecting a check valve, it is necessary to consider the characteristics of the medium, the pressure level, the installation direction and the use environment to ensure its efficient and stable operation.

Specifications:

> size range: 1/2"~24" (DN15~DN600)

> Pressure Rating: ASME 150~2500LB(PN16~PN420) > temperature range: -46°C -600°C

> connection methods: flange, welding, threading, etc

> main material: carbon steel, stainless steel, duplex steel, alloy steel, etc

> sealing surface hardening treatment: surfacing Stellite alloy and nickel-based alloy

Product Standards:

Design standard: GB/T 12235

Structure length: GB/T 12221

Connecting flange: GB/T9113

Test and inspection: GB/T 26480

Contact Now

Product Details

Features :

1. The check valve is suitable for nominal pressure 16-42. 0MPa(Class150~2500), the working temperature ≤ 600°C in petroleum, chemical, thermal power stations and other working conditions, its function is to prevent the backflow of the medium in the pipeline.

2. The check valve is divided according to the structure, which can be divided into lifting check valve, swing check valve and butterfly check valve, and the lifting check valve has its disc along the channel to make a lifting movement in a line, and the action is reliable, but the fluid resistance is large, and it is suitable for light and small caliber occasions; The disc of the swing check valve rotates around the rotating shaft. Its fluid resistance is generally less than that of the lifting check valve, and it is suitable for larger diameter occasions; The butterfly check valve has a simple structure, small flow resistance, and small water hammer pressure.

3. The sealing surface is welded with Co-based cemented carbide, which has good wear resistance, corrosion resistance, scratch resistance and long service life.

4. Nominal pressure≥15.0MPa(Class900) The middle cavity adopts a self-tightening sealing structure, and the sealing performance is enhanced with the increase of pressure, which ensures the sealing performance.

5. The material of the parts, the flange and the size of the butt welding end can be reasonably selected according to the actual working conditions or user requirements to meet various engineering needs.

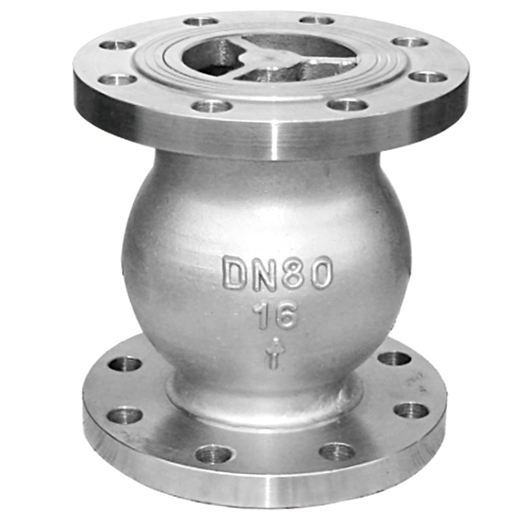

The national standard vertical check valve .jpg
