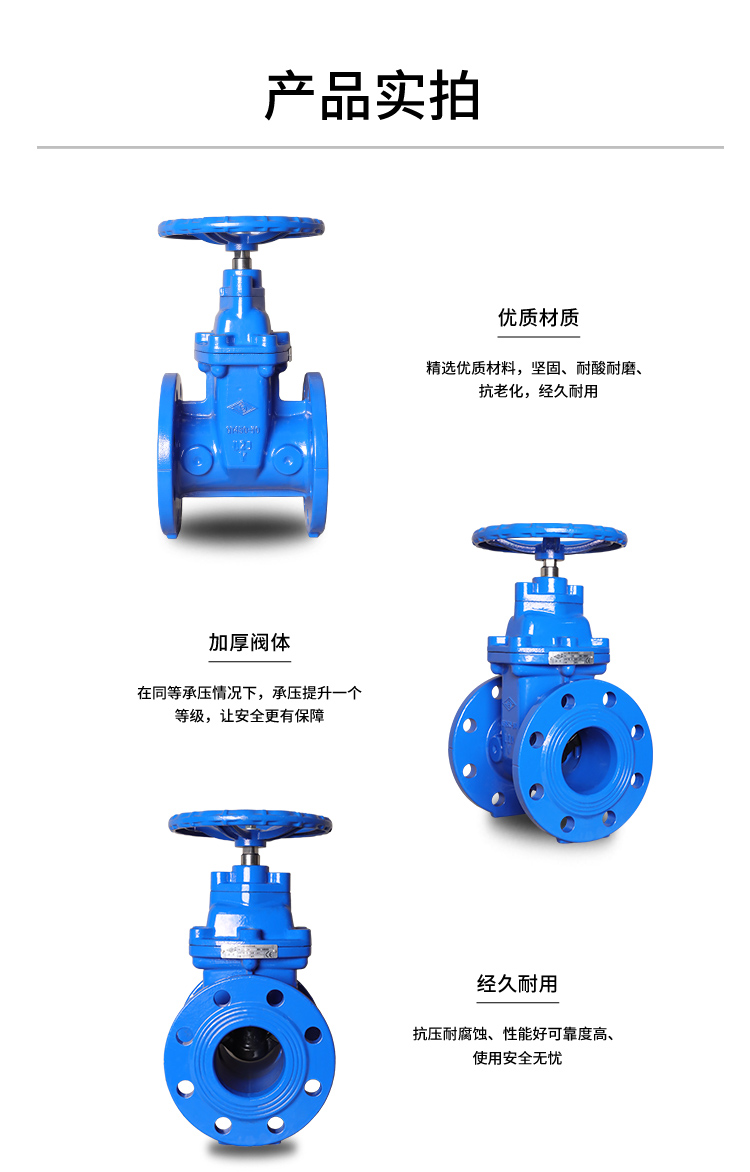

Flange concealed stem soft seal gate valve (Z45X-92C) DN50-DN600

Product overview:

This valve is mainly used to connect and cut off the medium in the pipeline. The valve stem rotates and its transmission thread is inside the body cavity, which can save installation space.

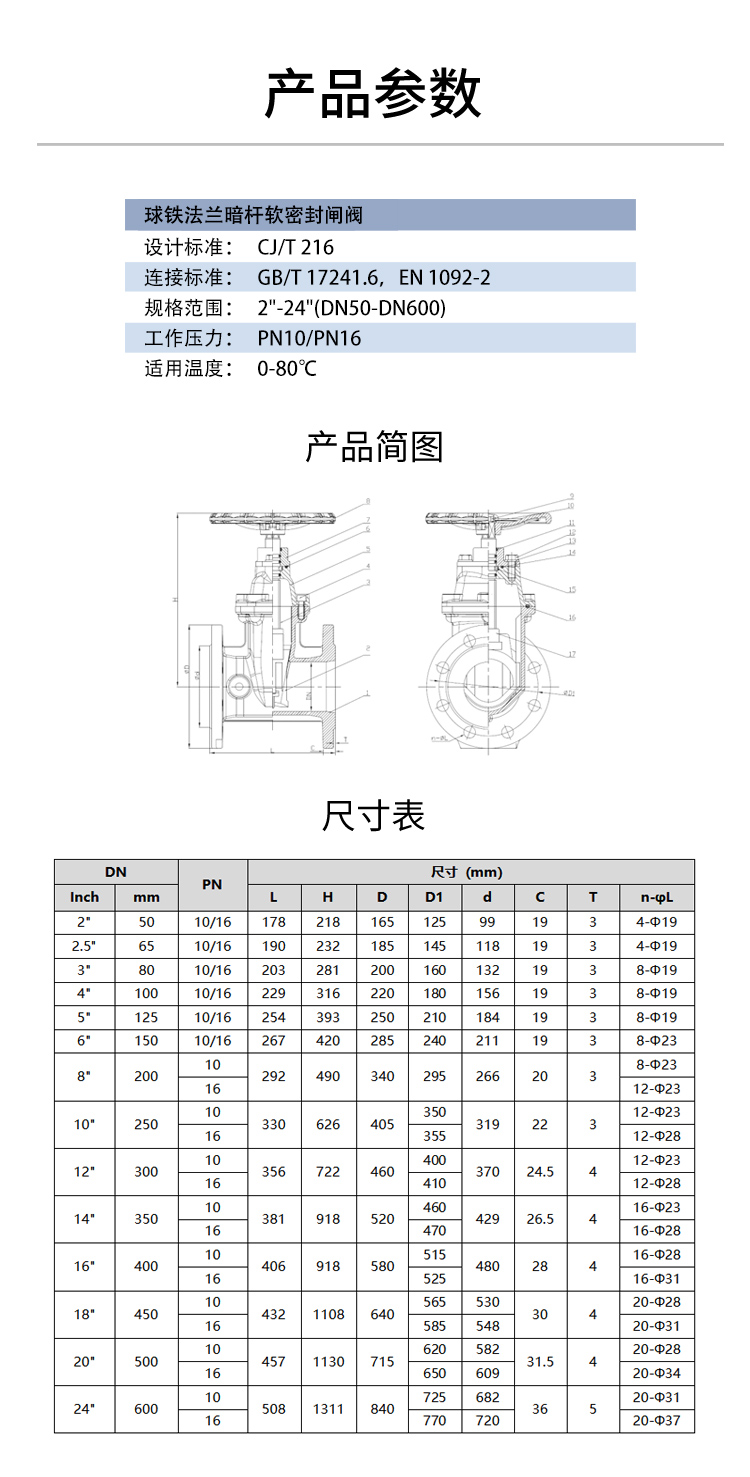

Parameter standards:

Size range: DN50-DN600

Design standard: CJ/T 216

Connection standard: GB/T 17241.6, EN 1092-2

Working pressure: PN16, PN10

Application scope: Flange concealed stem soft seal gate valve is mainly used in the fields of water services, water supply and drainage and air conditioning water, the medium temperature range is 0℃-80℃
