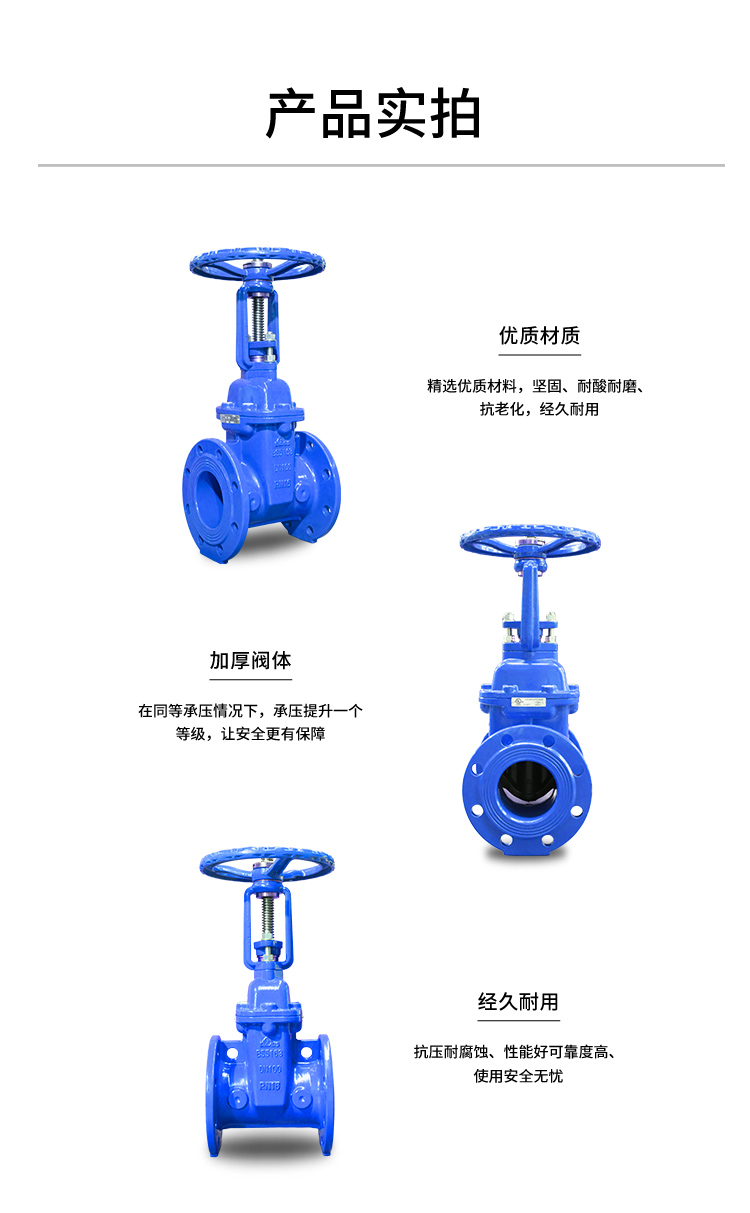

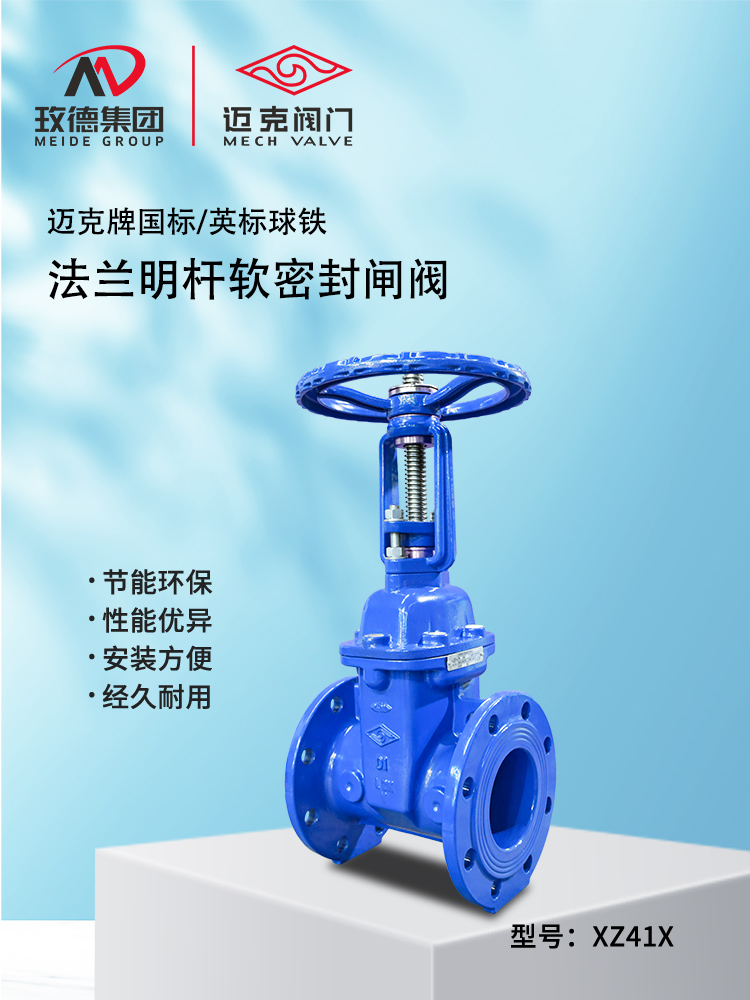

Flange rising stem soft seal gate valve (XZ41X-92C) DN50-DN600

Product overview:

This valve is mainly used to connect and cut off the medium in the pipeline. The valve stem nut is on the bracket. When opening and closing the gate, the valve stem nut is driven by the handwheel to realize the lifting and lowering of the valve stem. The valve switch can be identified according to the lifting height of the valve stem. .

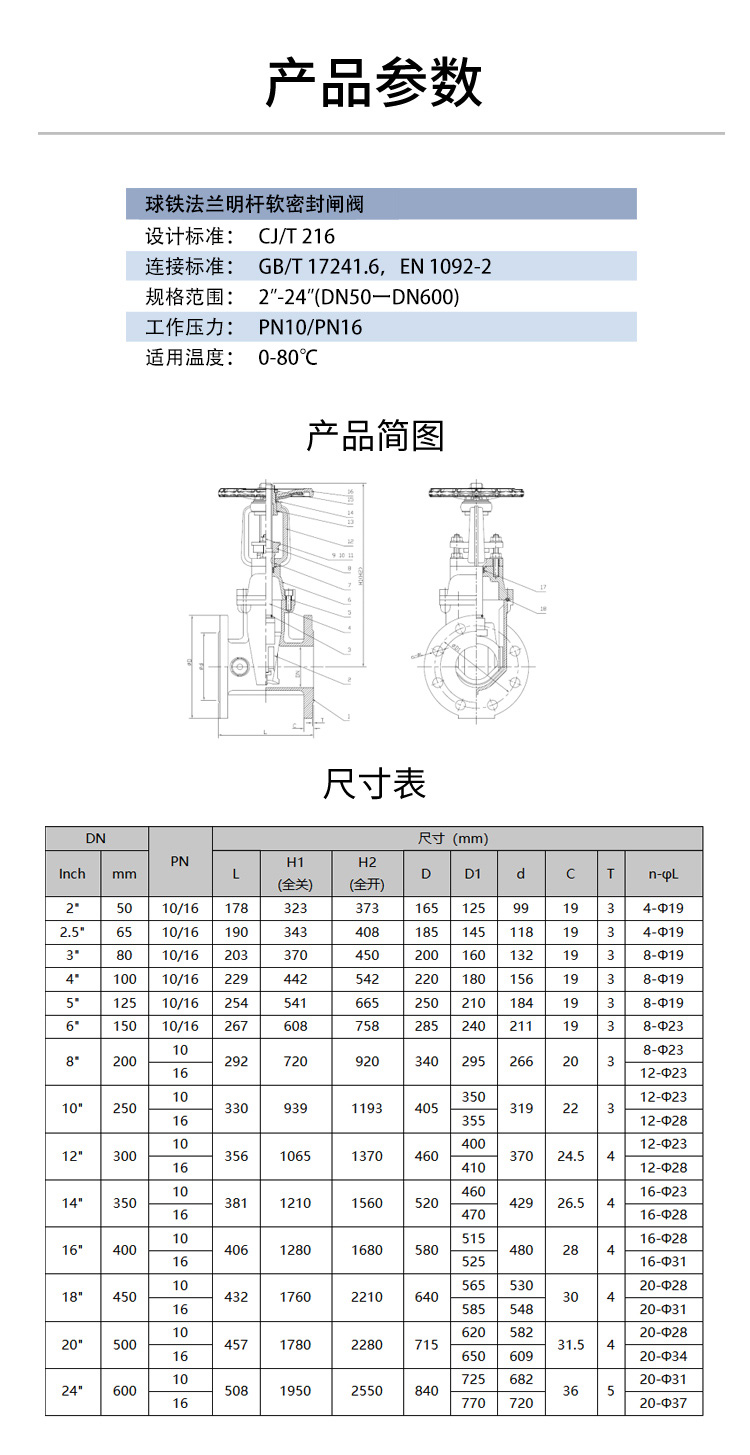

Parameter standards:

Size range: DN50-DN600

Design standard: CJ/T 216

Connection standard: GB/T 17241.6, EN 1092-2

Working pressure: PN16, PN10

Scope of application: Flange-type rising stem soft-sealed gate valves are mainly used in water services, water supply and drainage and air-conditioning water systems. The medium temperature range is 0℃-80℃.
